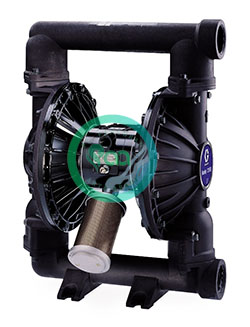

Diaphragm Pump Husky 2150 Metal are manufactured with your productivity in mind-providing you with one of the most reliable and efficient pumps in the market. Each membrane pump is thoroughly tested before it leaves our factories.
ADVANTAGES OF THE HUSKY AIR OPERATED DIAPHRAGM PUMPS
- Rugged construction – Resists corrosion for reliable performance and long life.
- Designed to last – Heavy duty design offers long life, increased productivity and lower overall cost of ownership
- Flow rates and sizes – up to 300 gpm (1135 lpm) / port sizes ranging from 1/4″ to 3” in NPT, BSP, and flange options.
- Easy maintenance – The Husky has fewer parts than industry peers, the complete air valve is externally accessible so it can be serviced fast and easy without removing the pump.
- Modular air valve – Stall-free, low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes down time.
Technical Specification Diaphragm Pump Husky 2150
Husky 2150 Metal Pumps
- Maximum fluid working pressure :
- Aluminum : 120 psi (8.4 bar, 0.84 MPa)
- Stainless steel : 120 psi (8.4 bar, 0.84 MPa)
- Ductile iron : 120 psi (8.4 bar, 0.84 MPa)
- Maximum free flow delivery :
- Aluminum : 150 gpm (568 lpm)
- Stainless steel : 150 gpm (568 lpm)
- Ductile iron :150 gpm (568 lpm)
- Maximum Pump speed :
- Aluminum : 145 cpm
- Stainless steel :145 cpm
- Ductile Iron : 145 cpm
- Displacement per cycle :
- Aluminum : 1.03 gallon (3.90 liter)
- Stainless steel : 1.03 gallon (3.90 liter)
- Ductile Iron : 1.03 gallon (3.90 liter)
- Maximum suction lift (DF3666) ;
- Aluminum : 20 ft (6.1 m) dry
- Stainless steel : 20 ft (6.1 m) dry
- Ductile Iron : 20 ft (6.1 m) dry
- Maximum size pumpable solids :
- Aluminum : 0.25 in (6.3 mm)
- Stainless steel : 0.25 in (6.3 mm)
- Ductile iron : 0.25 in (6.3 mm)
- Maximum operating temperature :
- Aluminum : 150°F (65.5°C)
- Stainless steel : 150°F (65.5°C)
- Ductile iron : 150°F (65.5°C)
- Maximum diaphragm operating temperature :
- PTFE :
- Aluminum : 220°F (104.4°C)
- Stainless steel : 220°F (104.4°C)
- Ductile iron :220°F (104.4°C)
- Santoprene :
- Aluminum : 180°F (82.2°C
- Stainless steel : 180°F (82.2°C
- Ductile iron : 180°F (82.2°C
- Buna-N :
- Aluminum : 180°F (82.2°C
- Stainless steel : 180°F (82.2°C)
- Ductile iron : 180°F (82.2°C
- TPE :
- Aluminum : 150°F (65.5°C)
- Stainless steel : 150°F (65.5°C)
- Ductile iron : 150°F (65.5°C)
- Fluoroelastomer :
- Aluminum : 250°F (121.1°C)
- Stainless steel : 250°F (121.1°C)
- Ductile iron : 250°F (121.1°C)
- Geolast :
- Aluminum : 150°F (65.5°C)
- Stainless steel : 150°F (65.5°C)
- Ductile iron : 150°F (65.5°C)
- PTFE :
- Typical sound level at 70 psi
(4.9 bar, 0.49 MPa) air @ 125 cpm :- Aluminum : 78 dBa
- Stainless steel : 78 dBa
- Ductile iron : 78 dBa
- Maximum air consumption :
- Aluminum : 175 scfm (4.9 m3/min)
- Stainless steel : 175 scfm (4.9 m3/min)
- Ductile iron : 175 scfm (4.9 m3/min).
